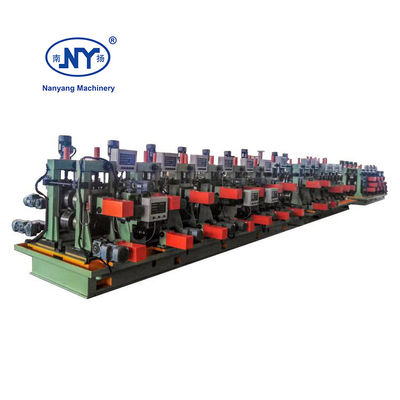

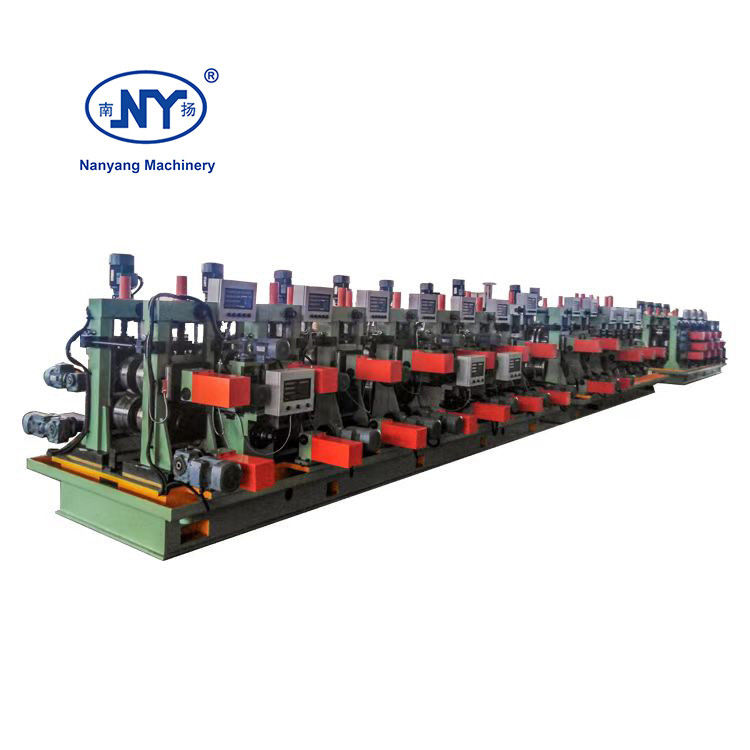

Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm

Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm

  • Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm
  • Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm
  • Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm
  • Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm
Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm
Product Details:
Payment & Shipping Terms:
Price: CN¥12,007,666.70/sets 1-1 sets
Packaging Details: Sea worthy packing
Supply Ability: 200 Set/Sets per Year pipe mill line
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu, China Machine Type: Tube Mill Line
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Core Components: Bearing, Gearbox, Motor Brand Name: Nanyang
Warranty: 1 Year Key Selling Points: Long Service Life
Weight (kg): 6000 Square Tube Size (mm): 80x80-200x200
Rectangular Tube Size (mm): 80x100-150x250 Tube Thickness (mm): 2.0~8.0
Max Speed (M/min): 40 Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Condition: New
Showroom Location: Viet Nam Applicable Industries: Energy & Mining, Construction Works , Building Material Shops, Manufacturing Plant

Product Description

Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm

Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm

Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm

Model

Square tube size
(mm)

Rectangular tube size
(mm)

Tube thickness
(mm)

Max speed
(M/min)

FBF110x5

50x50-110x110

50x60-80x140

1.5-5.0

70

FBF150x6

70x70-150x150

60x80-100x200

15-20.0

60

FBF200x8

80x80-200x200

80x100-150x250

2.0~8.0

40

FBF300x12

120x120-300x300

120x140-250x350

5.0-12.0

30

FBF400x16

200x200-400x400

200x250-350x450

6.0-16.0

25

FBF500x20

250x250-500x500

250x300-450x550

8.0-20.0

20





Advantages:
1.Roll Sharing: One set of rolls for all pipe sizes. Reduce roll cost up to 90%;
2.One-click change: Automatic size changing using servo control system. Ready by one-click;
3.Rapid adjustment: Size changing in 8 minutes. Reduce adjustment time up to 90%;
4.Save labor: Low labor intensity. Need only 2 workers for size changing;
5.Save material: Reduce at least 5% raw material.







Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm

Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm

Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm



Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm



Long Service Life Automatic Flexible Pipe Making Machine with Max Speed of 40 M/min and Tube Thickness of 2.0-8.0mm
