Name: Long Service Life Nanyang ERW Tube Pipe Mill Making Machine Line for Your Production Demands and Requirements
Brand: JIANGSU NANYANG MACHINERY MANUFACTURING CO.,LTD
Price: Negotiable USD
Availability: InStock

Home Products Automatic Flexible Forming Tube Mill Line

Long Service Life Nanyang ERW Tube Pipe Mill Making Machine Line for Your Production Demands and Requirements

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Nanyang

Payment & Shipping Terms:

Price:	CN¥12,007,666.70/sets 1-1 sets

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Type:	Pipe Mill
Pipe Material:	Carbon Steel	Production Capacity:	50 Tons/8 Hours
Voltage:	220V/380V/415V/440V	Power(w):	According To Machine Model
Dimension(LWH):	50m6m2.8m	Weight:	6000 Kg
Warranty:	1 Year	Key Selling Points:	Long Service Life
Square Tube Size (mm):	80x80-200x200	Rectangular Tube Size (mm):	80x100-150x250
Tube Thickness (mm):	2.0~8.0	Max Speed (M/min):	40
Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining	Showroom Location:	Viet Nam
Warranty Of Core Components:	1 Year	Condition:	New
Marketing Type:	Hot Product 2024

Products Description

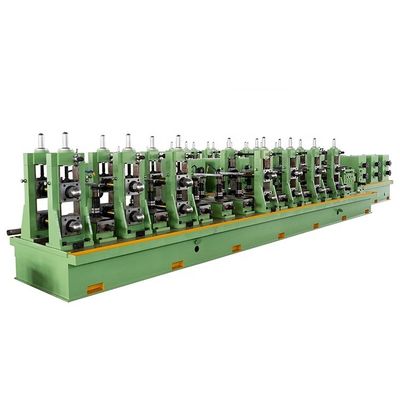

Nanyang High Efficiency automatic flexible ERW tube pipe mill making machine line Factory direct sale

Model	Welded pipe diameter	Welded pipe wall thickness	Welding speed	Main motor power	High frequency power
ZG90	Φ38～Φ127mm	δ1.2～4.5mm	20～70M/min	132KW×2	400KW
ZG115	Φ48～Φ127mm	δ1.4～5.0mm	20～60M/min	160KW×2	400KW
ZG165	Φ50.8～Φ165mm	δ1.8～6.0mm	15～50M/min	200KW×2	500KW
ZG219	Φ89～Φ219mm	δ2.0～8.0mm	12～40M/min	250KW×2	600KW
ZG273	Φ114～Φ273mm	δ2.5 ～10.0mm	10～30M/min	132KW×2, 160KW×2	800KW
ZG325	Φ168～Φ325mm	δ3.0 ～12.0mm	10～30M/min	160KW×2, 200KW×2	1000KW
ZG530	Φ219～Φ530mm	δ4.0 ～16.0mm	10～30M/min	75KW×5, 160KW×8	1500KW

ABOUT THE PRICE

Firstly, we provide free customized solution services！

The final price shall be based on the proposed quotation！

Our Features

1.Increase production capacity and increase production speed by 50%.

2.Reduce costs, reduce the cost of rough forming molds by over 70%, and reduce energy consumption.

3.Reduce production replacement time, reducing the over all mold replacement timeby over 60%.

4.Improve automation and intelligence, make operations more convenient, reduce labor intensity, and support informatization.

5.lmprove product quality and avoid surface scratches on pipes.

Customer Feedback

Company Profile

FAQ

Nanyang Machinery was founded in 1971. Since then, we have become the leading enterprisein the design and manufacture of tube mill line in China. We are granted the title of NationaHidden Champion Enterprise and National High-tech Enterprise. Our products include: highprecision and high-speed tube mill line, intelligent flexible forming tube mill line, automobileindustry tube mill line, stainless steel tube mill line and pipe forming rollers, etc. NanyangMachinery continues to create products with high strength, high precision and high speedOver the past 50 years, Nanyang product has been sold to over 70 countries and is highlyrecognized across the world. At present, Nanyang Machinery's sales volume, market shareand factory scale are all ranked first in the Chinese tube mill line industry.
