Name: Factory Price Pipe Mill Machine for Stainless Steel Iron Aluminum Round Pipe Making Machine
Brand: JIANGSU NANYANG MACHINERY MANUFACTURING CO.,LTD
Price: Negotiable USD
Availability: InStock

Home Products Carbon Steel Tube Mill Line

Factory Price Pipe Mill Machine for Stainless Steel Iron Aluminum Round Pipe Making Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Nanyang

Payment & Shipping Terms:

Price:	CN¥1,801,150.00/sets

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Bearing, Gearbox, Motor, Pump	Type:	Pipe Mill
Pipe Material:	Carbon Steel	Application:	Energy Supply Pipe
Voltage:	220V/380V/415V/440V	Power(w):	500000
Dimension(LWH):	14m1.8m1.5m	Weight:	21000 Kg
Warranty:	One Year	Key Selling Points:	Long Service Life
Diameter Of Welded Tube:	19-63.5mm	Wall Thickness Of Welded Tube:	0.8-3.5mm
Milling Speed:	30-90M/Min	Main Motor Power:	200KW
High Frequency Power:	250KW	Annual Output:	21900t
Pipe Shape:	Round Square Rectangle Pipe	Cutting System:	Cold Cutting Saw/Friction Saw

Products Description

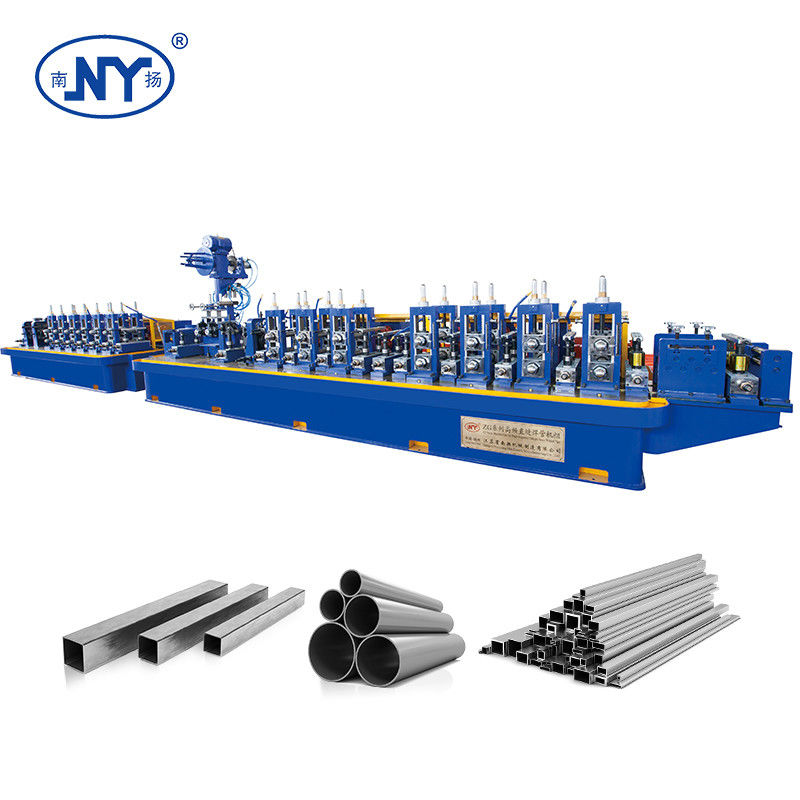

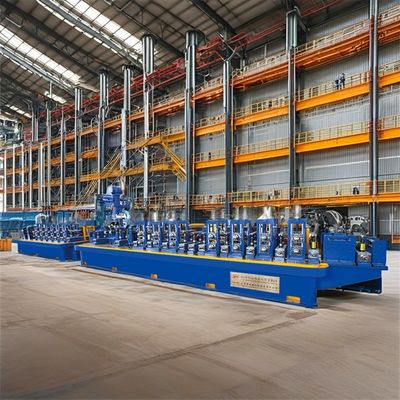

This equipment is specially used for producing ERW pipes,including round tubessquare pipes, rectangular pipes and special-shaped pipe.The whole production line includes machines from uncoiler to cutting saw.Welding speed can be adjusted according to the pipe diameter,thickness and length.

PARAMRTER

JIANGSU NANYANG MACHINERY MANUFACTURING CO.,LTD.

Model	Welded pipe diameter	Welded pipe wall thickness	Welding speed	Main motor power	High frequency power
ZG16	Φ8～Φ25mm	δ0.25～1.0mm	30～120M/min	37KW	100KW
ZG25	Φ8～Φ32mm	δ0.3～1.3mm	40～120M/min	45KW	100KW
ZG32	Φ13～Φ40mm	δ0.4～2.0mm	30～110M/min	110KW	150KW
ZG45	Φ16～Φ50.8mm	δ0.5～2.5mm	30～110M/min	132KW	200KW
ZG50	Φ19～Φ63.5mm	δ0.6～3.0mm	30～100M/min	160KW	200KW
ZG60	Φ19～Φ63.5mm	δ0.7～3.5mm	30～100M/min	200KW	250KW
ZG76	Φ25～Φ90mm	δ0.9～4.0mm	20～80M/min	200KW	300KW
ZG90	Φ38～Φ127mm	δ1.2～4.5mm	20～70M/min	132KW×2	400KW
ZG115	Φ48～Φ127mm	δ1.4～5.0mm	20～60M/min	160KW×2	400KW
ZG165	Φ50～Φ165mm	δ1.8～6.0mm	15～50M/min	200KW×2	500KW
ZG219	Φ89～Φ219mm	δ2.0～8.0mm	12～40M/min	250KW×2	600KW
ZG273	Φ114～Φ273mm	δ2.5 ～10.0mm	10～30M/min	132KW×2, 160KW×2	800KW
ZG325	Φ168～Φ325mm	δ3.0～12.0mm	10～30M/min	160KW×2, 200KW×2	1000KW
ZG530	Φ219～Φ530mm	δ4.0 ～16.0mm	10～30M/min	75KW×5, 160KW×8	1500KW

ABOUT THE PRICE

Firstly, we provide free customized solution services！

The final price shall be based on the proposed quotation！

SINGLE/ DOUBLE SIDE MANUAL/PNEUMATIC/HYDRAULIC UNCOILER

It uncoils the strip coil, so the raw material is ready for preprocessing.Strip coil can be expanded bymanual/ pneumatic/ hydraulic.The uncoiler can berotated forward and backward. Strip coil expandingspeed can be adjusted.Braking device is a pneumatic brake, which is safe and reliable.

SHEARING AND BUTT-WELDINGMACHINE

Its function is shearing and aligning the head and the end of two different strips, cutting off irregular parts and welding two strips together, so the line can work continuously.

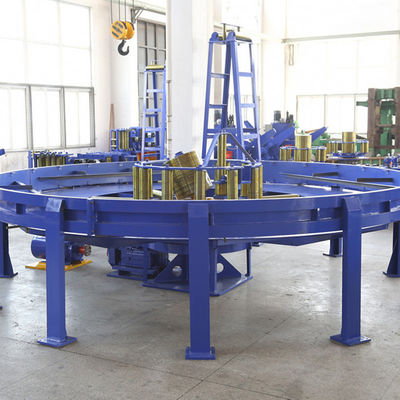

ACCUMULATOR HORIZONTAL ACCUMULATOR

This unit stores continuous steel strip to ensure continuous pipe production.lts structure adopts the storing mechanism that takes in strips on the edge and output in the middle.

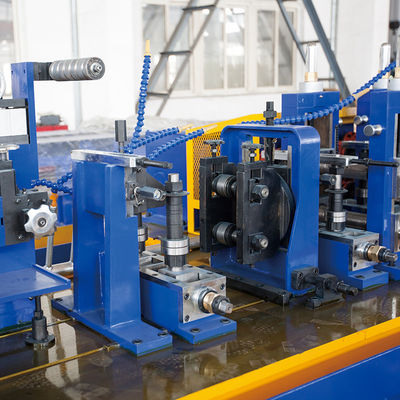

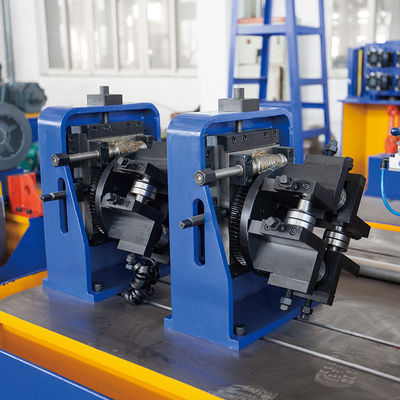

FORMING MILL

It can gradually squeeze steel strip into tube blank by forming rolls.Power is transmitted through universal shafts to horizontal shafts on forming mill.

SIZING MILL

It can precisely squeeze the welded tube blank into required size and straighten tube blank to have ideal surface quality.

FRICTION SAW

It cuts the finished pipes into the required length.

Cold cutting saw The cold cutting saw is to track the finished pipe, clamp it after synchronization, and cut it torequired length. The cutting processis controlled by servo motor. lts cutting edge of pipe has few burrs.

RUN OUT TABLE

It has single and double sidetypes.The function is to convey finished pipes to packing areaand unload them to different sides according to quality control.Unload direction can be set as needed.

SOLID STATE HIGHFREQUENCY WELDER

Its function is to weld the tube seam.lt has the advantage of highwelding quality, fast speed andreliable circuit, convenient commissioning and operation,and energy saving.

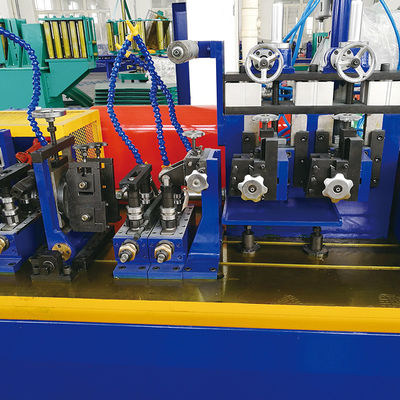

Forming Section

Function: to form the steel strips into a round shape and ready to be welded.

Advantage: >Advanced forming technology

>One-stage
molding platform

>Reliable quality gearbox

>Siemens Beide motor

Welding Section

Function: To weld the edges of the steel strips together by H.F. Welder (the H.F. Welder is not included).

Forming & Sizing Mill

Function: After welding, the pipes are almost the round shape, but it still needs to be modified into a regular round shape.

Standard configuration:

1. Uncoiler: Mechanical tension bridle manual adjustment .

2. Horizontal and vertical holder: Passed heat treatment to make black. The holder will rust protection when used.

3. Bearing : Used deep groove ball bearing

4. Welding : Argon welding machine (500A) .

5. Grinding head: Manual by hand to debugging.

6. Cutting machine: Abrasive cutting machine.

7. Drive motor used Siemens brand, grinding motor used Kaiyuan brand.

Nanyang rollers are widely used indifferent fields, including rollers forERW pipes, stainless steel pipes,laser welding pipes, special profilepipes and etc. We adopt a set ofadvanced maching processesand strict heat treatments toguarantee the hardness, wearresistance and precision of therollers.
