Name: Nanyang Standard Tested Fully Automatic Pipe Making Machinery The Ultimate Solution for Energy Supply Pipe Manufacturing
Brand: JIANGSU NANYANG MACHINERY MANUFACTURING CO.,LTD
Price: Negotiable USD
Availability: InStock

Home Products Carbon Steel Tube Mill Line

Nanyang Standard Tested Fully Automatic Pipe Making Machinery The Ultimate Solution for Energy Supply Pipe Manufacturing

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Nanyang

Payment & Shipping Terms:

Price:	CN¥535,301.78-2,020,890.30/sets

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Pipe Shape:	ROUND, Square
Type:	Pipe Mill	Pipe Material:	Carbon Steel
Application:	Energy Supply Pipe	Voltage:	220V/380V/415V/440V
Power(w):	160KW	Dimension(LWH):	6m1.1m1m
Weight:	6000 Kg	Warranty:	One Year
Key Selling Points:	Long Service Life	Diameter Of Welded Tube:	13-50.8mm
Wall Thickness Of Welded Tube:	0.6-2.3mm	Milling Speed:	30-100M/Min
Main Motor Power:	132KW	High Frequency Power:	150KW
Annual Output:	12800t	Pipe Shape:	Round Square Rectangle Pipe
Cutting System:	Cold Cutting Saw/Friction Saw

Products Description

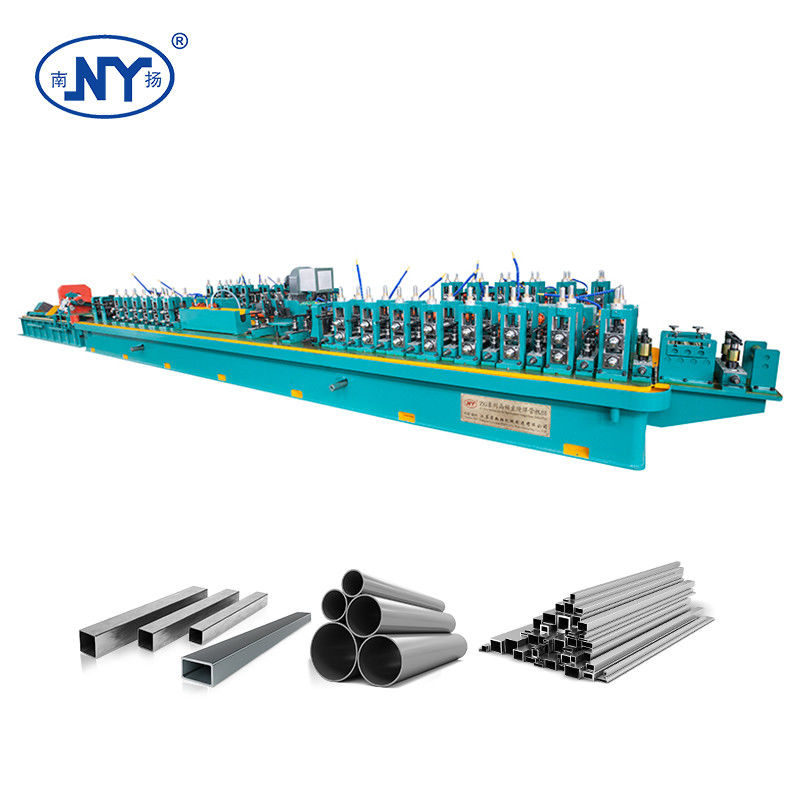

Nanyang standard tested fully automatic pipe making machinery erw tube pipe mill line

Model	Welded pipe diameter	Welded pipe wall thickness	Welding speed	Main motor power	High frequency power
ZG16	Φ8～Φ25mm	δ0.25～1.0mm	30～120M/min	37KW	100KW
ZG25	Φ8～Φ32mm	δ0.3～1.3mm	40～120M/min	45KW	100KW
ZG32	Φ13～Φ40mm	δ0.4～2.0mm	30～110M/min	110KW	150KW
ZG45	Φ16～Φ50.8mm	δ0.5～2.5mm	30～110M/min	132KW	200KW
ZG50	Φ19～Φ63.5mm	δ0.6～3.0mm	30～100M/min	160KW	200KW
ZG60	Φ19～Φ63.5mm	δ0.7～3.5mm	30～100M/min	200KW	250KW
ZG76	Φ25～Φ90mm	δ0.9～4.0mm	20～80M/min	200KW	300KW
ZG90	Φ38～Φ127mm	δ1.2～4.5mm	20～70M/min	132KW×2	400KW
ZG115	Φ48～Φ127mm	δ1.4～5.0mm	20～60M/min	160KW×2	400KW
ZG165	Φ50.8～Φ165mm	δ1.8～6.0mm	15～50M/min	200KW×2	500KW
ZG219	Φ89～Φ219mm	δ2.0～8.0mm	12～40M/min	250KW×2	600KW
ZG273	Φ114～Φ273mm	δ2.5 ～10.0mm	10～30M/min	132KW×2, 160KW×2	800KW
ZG325	Φ168～Φ325mm	δ3.0 ～12.0mm	10～30M/min	160KW×2, 200KW×2	1000KW
ZG530	Φ219～Φ530mm	δ4.0 ～16.0mm	10～30M/min	75KW×5, 160KW×8	1500KW
