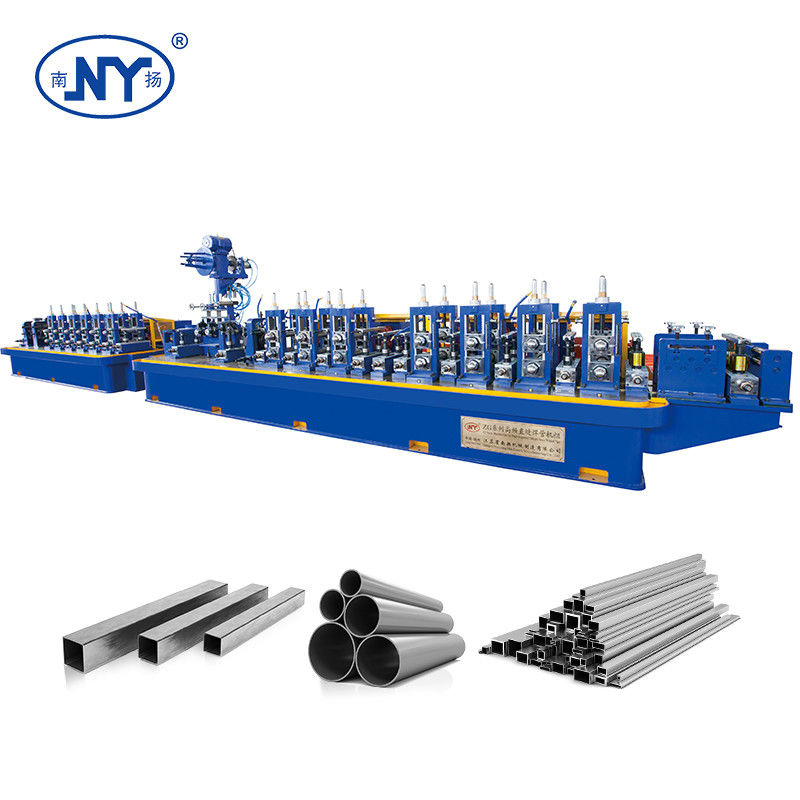

Name: 160KW Main Motor Stainless Steel SS Plumbing Tube Pipe Making Production Line Machinery for Small to Medium-Sized Pipes
Brand: JIANGSU NANYANG MACHINERY MANUFACTURING CO.,LTD
Price: Negotiable USD
Availability: InStock

Home Products Carbon Steel Tube Mill Line

160KW Main Motor Stainless Steel SS Plumbing Tube Pipe Making Production Line Machinery for Small to Medium-Sized Pipes

Product Details:

Payment & Shipping Terms:

Price:	CN¥1,050,762.10/sets 1-1 sets
Packaging Details:	Sea worthy packing
Supply Ability:	200 Set/Sets per Year pipe mill line

Contact Now

Detailed Product Description

Place Of Origin:	Jiangsu, China	Machine Type:	Tube Mill Line
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Bearing, Gearbox, Motor	Brand Name:	Nanyang
Warranty:	1 Year	Key Selling Points:	Long Service Life
Weight (kg):	14000	Diameter Of Welded Tube:	19-76mm
Wall Thickness Of Welded Tube:	0.7-2.75mm	Milling Speed:	30-100M/Min
Main Motor Power:	160KW	High Frequency Power:	200KW
Annual Output:	23400t	Pipe Shape:	Round Square Rectangle Etc
Welding Type:	High Frequency Welded	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Condition:	New
Showroom Location:	Viet Nam	Applicable Industries:	Energy & Mining, Construction Works , Building Material Shops, Manufacturing Plant
Port:	Shanghai

Products Description

Automatic Stainless Steel SS Plumbing Tube Pipe Making Production Line Machinery

Model	Welded pipe diameter	Welded pipe wall thickness	Welding speed	Main motor power	High frequency power
ZG16	Φ8～Φ25mm	δ0.25～1.0mm	30～120M/min	37KW	100KW
ZG25	Φ8～Φ32mm	δ0.3～1.3mm	40～120M/min	45KW	100KW
ZG32	Φ13～Φ40mm	δ0.4～2.0mm	30～110M/min	110KW	150KW
ZG45	Φ16～Φ50.8mm	δ0.5～2.5mm	30～110M/min	132KW	200KW
ZG50	Φ19～Φ63.5mm	δ0.6～3.0mm	30～100M/min	160KW	200KW
ZG60	Φ19～Φ63.5mm	δ0.7～3.5mm	30～100M/min	200KW	250KW
ZG76	Φ25～Φ90mm	δ0.9～4.0mm	20～80M/min	200KW	300KW
ZG90	Φ38～Φ127mm	δ1.2～4.5mm	20～70M/min	132KW×2	400KW
ZG115	Φ48～Φ127mm	δ1.4～5.0mm	20～60M/min	160KW×2	400KW
ZG165	Φ50.8～Φ165mm	δ1.8～6.0mm	15～50M/min	200KW×2	500KW
ZG219	Φ89～Φ219mm	δ2.0～8.0mm	12～40M/min	250KW×2	600KW
ZG273	Φ114～Φ273mm	δ2.5 ～10.0mm	10～30M/min	132KW×2, 160KW×2	800KW
ZG325	Φ168～Φ325mm	δ3.0 ～12.0mm	10～30M/min	160KW×2, 200KW×2	1000KW
ZG530	Φ219～Φ530mm	δ4.0 ～16.0mm	10～30M/min	75KW×5, 160KW×8	1500KW
