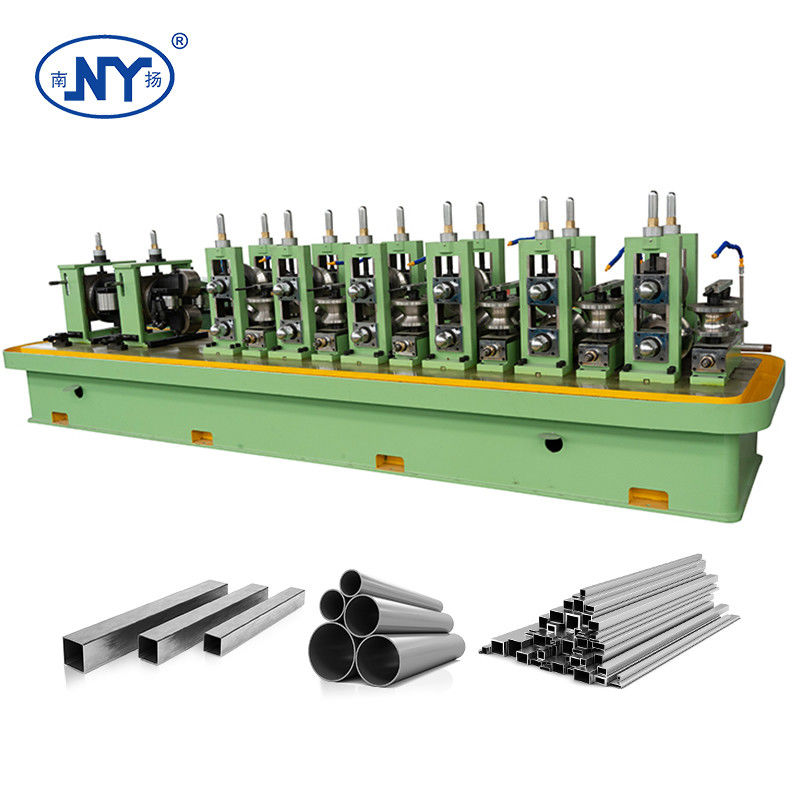

Name: 200KW Main Motor Power Stable Performance Carbon Steel ERW Tube Mill Line with Low Failure Rate and Long Service Life
Brand: JIANGSU NANYANG MACHINERY MANUFACTURING CO.,LTD
Price: Negotiable USD
Availability: InStock

Home Products Carbon Steel Tube Mill Line

200KW Main Motor Power Stable Performance Carbon Steel ERW Tube Mill Line with Low Failure Rate and Long Service Life

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Nanyang

Payment & Shipping Terms:

Price:	CN¥1,243,622.03/sets 1-1 sets
Packaging Details:	Sea worthy packing
Supply Ability:	200 Set/Sets per Year pipe mill line

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Bearing, Gearbox, Motor, Pump	Type:	Pipe Mill
Pipe Material:	Carbon Steel	Application:	Energy Supply Pipe
Production Capacity:	60t/h	Voltage:	220V/380V/415V/440V
Power(w):	500000	Dimension(LWH):	14m1.8m1.5m
Weight:	21000 Kg	Warranty:	One Year
Key Selling Points:	Long Service Life	Diameter Of Welded Tube:	19-63.5mm
Wall Thickness Of Welded Tube:	0.8-3.5mm	Milling Speed:	30-90M/Min
Main Motor Power:	200KW	High Frequency Power:	250KW
Annual Output:	21900t	Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining
Showroom Location:	Viet Nam	Warranty Of Core Components:	1 Year
Condition:	New	Marketing Type:	Hot Product 2023
Port:	Shanghai

Products Description

Model	Welded pipe diameter	Welded pipe wall thickness	Welding speed	Main motor power	High frequency power
ZG16	Φ8～Φ25mm	δ0.25～1.0mm	30～120M/min	37KW	100KW
ZG25	Φ8～Φ32mm	δ0.3～1.3mm	40～120M/min	45KW	100KW
ZG32	Φ13～Φ40mm	δ0.4～2.0mm	30～110M/min	110KW	150KW
ZG45	Φ16～Φ50.8mm	δ0.5～2.5mm	30～110M/min	132KW	200KW
ZG50	Φ19～Φ63.5mm	δ0.6～3.0mm	30～100M/min	160KW	200KW
ZG60	Φ19～Φ63.5mm	δ0.7～3.5mm	30～100M/min	200KW	250KW
ZG76	Φ25～Φ90mm	δ0.9～4.0mm	20～80M/min	200KW	300KW
ZG90	Φ38～Φ127mm	δ1.2～4.5mm	20～70M/min	132KW×2	400KW
ZG115	Φ48～Φ127mm	δ1.4～5.0mm	20～60M/min	160KW×2	400KW
ZG165	Φ50.8～Φ165mm	δ1.8～6.0mm	15～50M/min	200KW×2	500KW
ZG219	Φ89～Φ219mm	δ2.0～8.0mm	12～40M/min	250KW×2	600KW
ZG273	Φ114～Φ273mm	δ2.5 ～10.0mm	10～30M/min	132KW×2, 160KW×2	800KW
ZG325	Φ168～Φ325mm	δ3.0 ～12.0mm	10～30M/min	160KW×2, 200KW×2	1000KW
ZG530	Φ219～Φ530mm	δ4.0 ～16.0mm	10～30M/min	75KW×5, 160KW×8	1500KW
