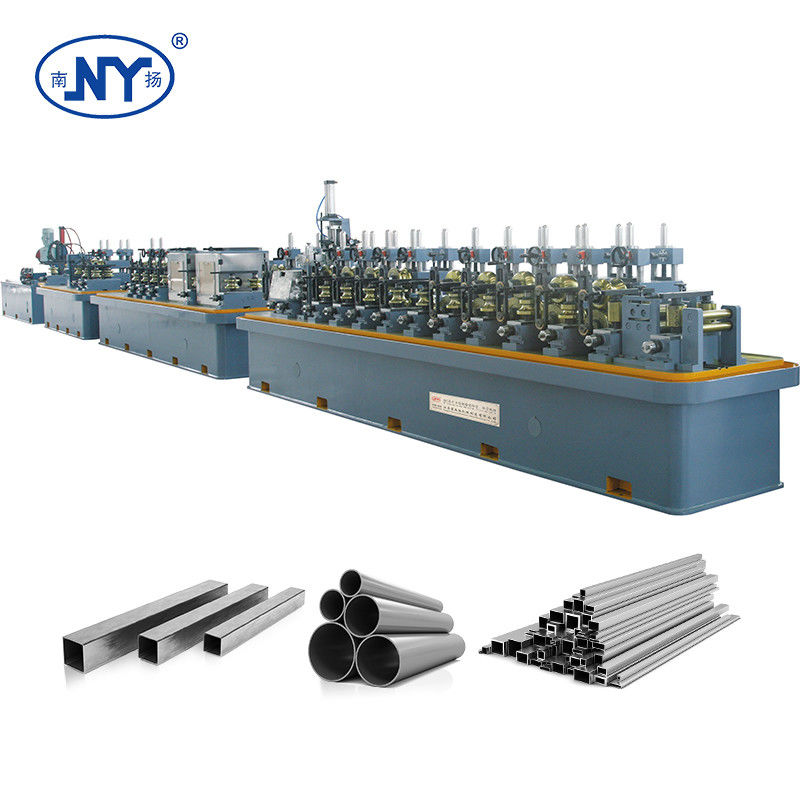

Name: 0.4-5M/Min Milling Speed Straight Seam Hollow Section Pipe Making Machine with High Frequency Welding
Brand: JIANGSU NANYANG MACHINERY MANUFACTURING CO.,LTD
Price: Negotiable USD
Availability: InStock

Home Products Stainless Steel Tube Mill Line

0.4-5M/Min Milling Speed Straight Seam Hollow Section Pipe Making Machine with High Frequency Welding

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Nanyang

Payment & Shipping Terms:

Price:	CN¥1,506,416.38/sets 1-1 sets
Packaging Details:	Sea worthy packing
Supply Ability:	200 Set/Sets per Year Stainless Steel Tube Mill Line

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Type:	Pipe Mill
Pipe Material:	Stainless Steel	Application:	Energy Supply Pipe
Production Capacity:	/	Voltage:	220V/380V/415V/440V
Power(w):	45000	Dimension(LWH):	Oem
Weight:	9500 Kg	Warranty:	One Year
Key Selling Points:	Long Service Life	Diameter Of Welded Tube:	16-50.8mm
Wall Thickness Of Welded Tube:	0.6-3.0mm	Milling Speed:	0.4-5M/Min
Main Motor Power:	15KW*3	Annual Output:	700t
Pipe Shape:	Round Square Rectangle Pipe	Welding Type:	High Frequency Welding

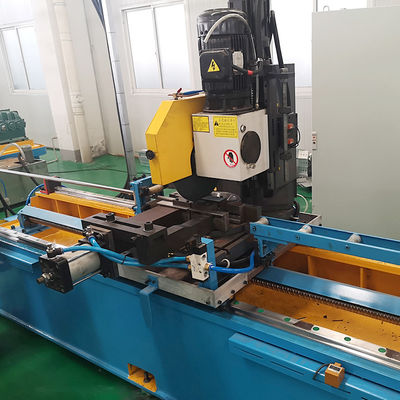

Cutting System:	Cold Cutting Saw	Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining
Showroom Location:	Viet Nam	Warranty Of Core Components:	1 Year
Condition:	New	Marketing Type:	Hot Product 2021

Products Description

Straight Seam Hollow Section Pipe Making Machine HF Welded Tube Mill Machinery

Model	Welded pipe diameter	Welded pipe wall thickness	Welding speed	Main motor power	High frequency power
ZG16	Φ8～Φ25mm	δ0.25～1.0mm	30～120M/min	37KW	100KW
ZG25	Φ8～Φ32mm	δ0.3～1.3mm	40～120M/min	45KW	100KW
ZG32	Φ13～Φ40mm	δ0.4～2.0mm	30～110M/min	110KW	150KW
ZG45	Φ16～Φ50.8mm	δ0.5～2.5mm	30～110M/min	132KW	200KW
ZG50	Φ19～Φ63.5mm	δ0.6～3.0mm	30～100M/min	160KW	200KW
ZG60	Φ19～Φ63.5mm	δ0.7～3.5mm	30～100M/min	200KW	250KW
ZG76	Φ25～Φ90mm	δ0.9～4.0mm	20～80M/min	200KW	300KW
ZG90	Φ38～Φ127mm	δ1.2～4.5mm	20～70M/min	132KW×2	400KW
ZG115	Φ48～Φ127mm	δ1.4～5.0mm	20～60M/min	160KW×2	400KW
ZG165	Φ50.8～Φ165mm	δ1.8～6.0mm	15～50M/min	200KW×2	500KW
ZG219	Φ89～Φ219mm	δ2.0～8.0mm	12～40M/min	250KW×2	600KW
ZG273	Φ114～Φ273mm	δ2.5 ～10.0mm	10～30M/min	132KW×2, 160KW×2	800KW
ZG325	Φ168～Φ325mm	δ3.0 ～12.0mm	10～30M/min	160KW×2, 200KW×2	1000KW
ZG530	Φ219～Φ530mm	δ4.0 ～16.0mm	10～30M/min	75KW×5, 160KW×8	1500KW

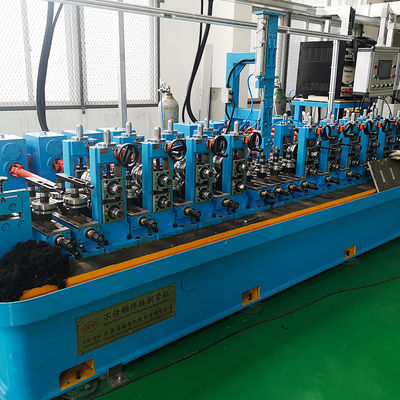

Forming Section

Function: to form the steel strips into a round shape and ready to be welded. Advantage: >Advanced forming technology >One-stage molding platform >Reliable quality gearbox >Siemens Beide motor

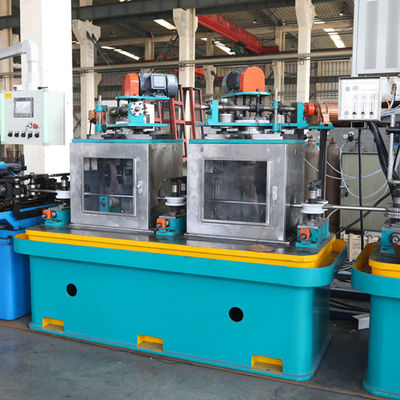

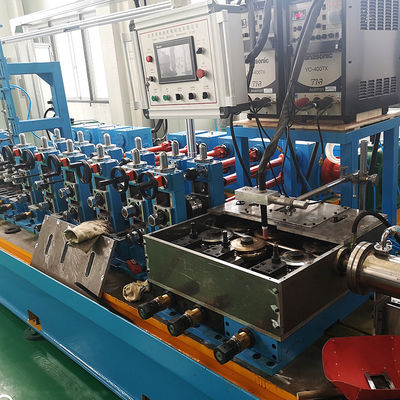

Welding Section Function: To weld the edges of the steel strips together by H.F. Welder (the H.F. Welder is not included). Forming & Sizing Mill Function: After welding, the pipes are almost the round shape, but it still needs to be modified into a regular round shape.

Standard configuration: 1. Uncoiler: Mechanical tension bridle manual adjustment . 2. Horizontal and vertical holder: Passed heat treatment to make black. The holder will rust protection when used. 3. Bearing : Used deep groove ball bearing 4. Welding : Argon welding machine (500A) . 5. Grinding head: Manual by hand to debugging. 6. Cutting machine: Abrasive cutting machine. 7. Drive motor used Siemens brand, grinding motor used Kaiyuan brand.
